Public Baths
Lighting for safe and atmospheric public baths
Emergency lighting and underwater lighting
We offer comprehensive solutions for public baths where safety and aesthetics go hand in hand. Our range includes both underwater lighting that creates an inviting atmosphere and emergency lighting that ensures safe evacuation during power outages or other emergencies.
Our underwater fixtures are designed to withstand the harsh conditions found in swimming halls and pools. They contribute to a pleasant swimming experience by providing clear, even light without glare.
At the same time, our emergency lighting is adapted for public bath environments and meets all requirements for safety lighting. We offer both directional signs and effective emergency lighting solutions that function in humid and chlorinated environments.
Safety
Underwater lighting that effectively illuminates the bottom of the swimming pool increases safety. Serious incidents have unfortunately occurred in pools where lighting was deficient or non-existent. Effective and correctly planned underwater lighting significantly increases the chances of locating individuals on the pool floor.
The fixtures must be equipped with tempered safety glass on the front and a manhole cover made of acid-resistant stainless steel on the back. This means that if the glass should break for any reason, the pool will not be drained of water, as the sealed manhole cover prevents water from escaping through the fixture.
Comfort
With good underwater lighting, other light in the swimming hall can be dimmed. The pool or water park is perceived as brighter and considerably more inviting.

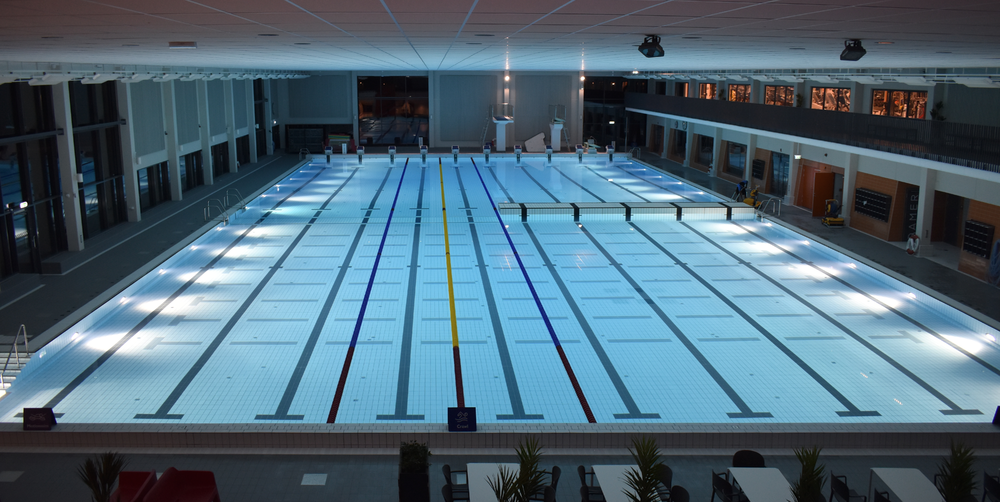

In exercise and competition pools, we generally suggest continuous installation with our 4.2000 or 4.1900 fixtures, as the goal there is to achieve the most effective and high-quality lighting possible, especially in pools with deep sections.

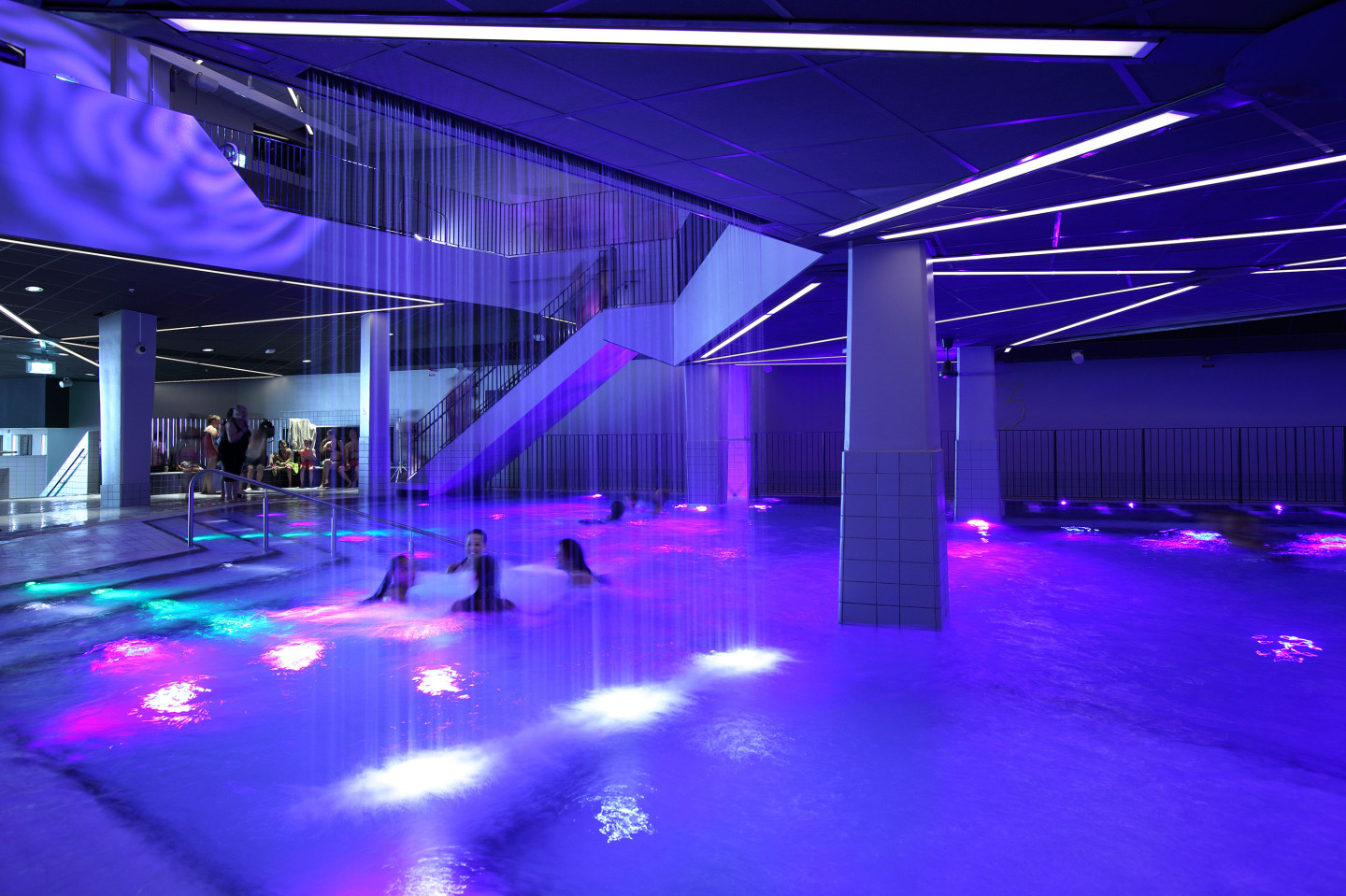

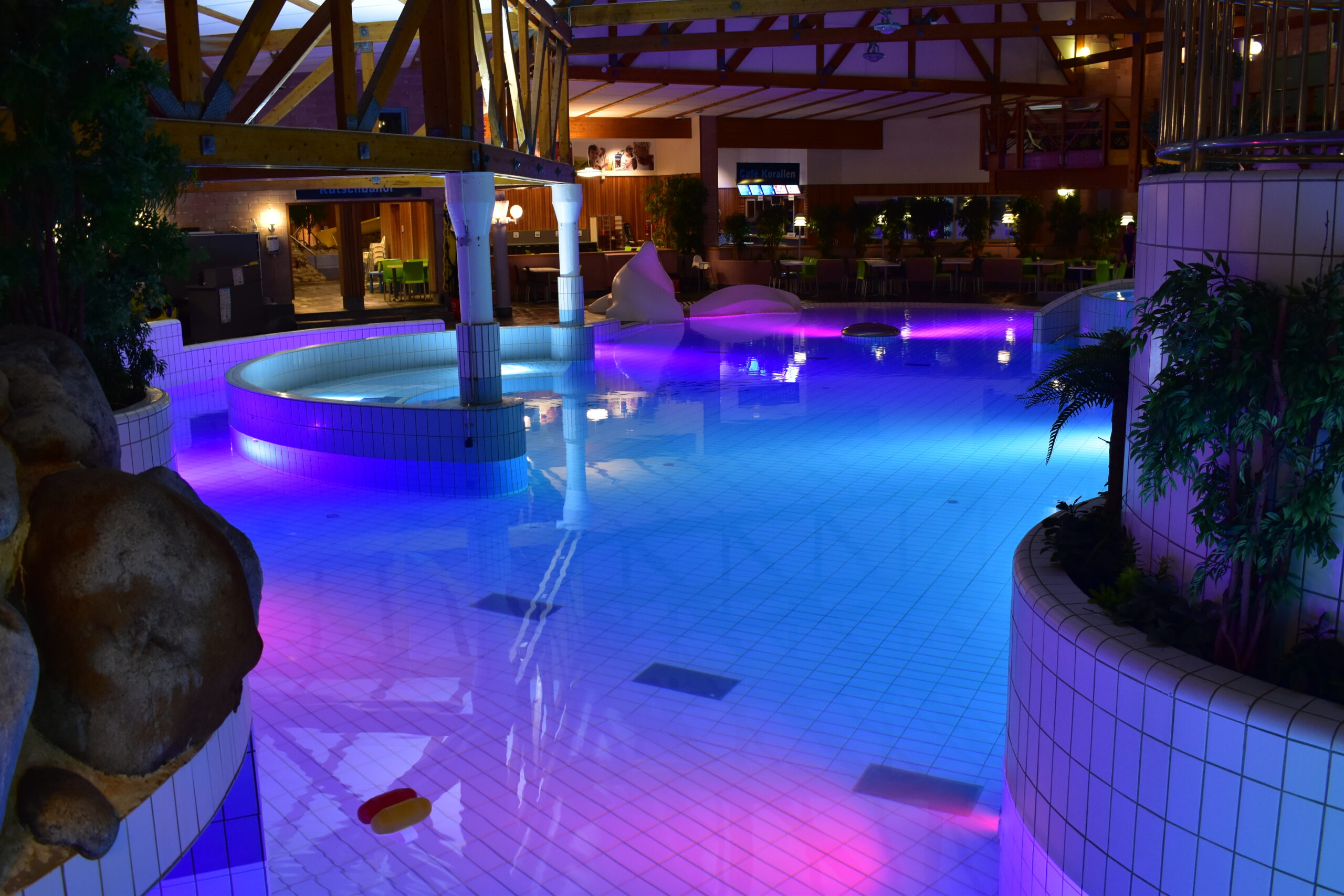

In water parks or rehabilitation pools, we currently work primarily with recessed fixtures from the pool side. Light sources today consist mainly of white LED light or RGB. With RGB-W fixtures, you can change the appearance of your aquatic landscape from one moment to the next.
Why not invite guests to theme nights with a swim in the Red Sea, diving in the Blue Lagoon, or floating freely along the Yellow River? Well-planned RGB-W lighting is undoubtedly an attraction in itself and contributes to increased comfort and experience for your customers.
Energy efficiency
Underwater lighting for both exercise/competition pools and leisure pools is carefully developed to offer the best possible lighting
with the lowest possible energy consumption.
The reflectors and lenses in the fixtures are designed to spread light along the pool floor and utilize the pool’s reflections.
Looking solely at the fixture’s power during planning gives an incorrect assessment. Many existing swimming halls today are equipped with halogen fixtures ranging from 300 to 1000 W.
Fixtures with both lower energy consumption and higher light output are replacing many of these units.
Selected products
Linear pool lighting

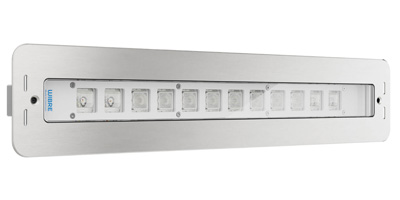

4.0502 is our larger model in the linear underwater lighting series. It is available with a mounting box for concrete/tile and for weld mounting.
Pool fixture
4.0492 is adapted for larger pools such as 50-meter and 25-meter pools. The fixture is suitable for use down to a depth of 5 meters.
ONTEC G
Single and double-sided exit sign for ceiling and wall mounting. 25m viewing distance.
GuideLED SL
Emergency lighting for high altitudes and stairs with surface mounting. Minimal service requirement thanks to the long lifespan of the LED lamps.
