Design Guide for Fountain Lighting

It is important to have the right lighting solution in the right place.

waterfall_2a2830e1

WATERFALL

Aim, where possible, to illuminate the waterfall from below, with the light directed upward along the waterfall.
Examples of luminaire series include:
4.0192
4.0100

waterfall_2a2830e1

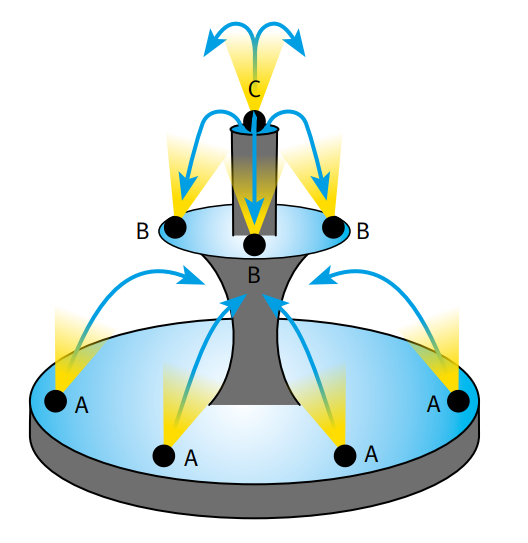

ADVANCED FOUNTAIN WITH DIFFERENT WATER JETS

Try to illuminate the fountain in varied ways.
Example: The outer jets A are illuminated from below in the direction of the jet, while jets B are illuminated from below against the direction of the jet. Jet C is illuminated along the direction of the jet from the centre.
TIP! Keep in mind to highlight details in the fountain and choose luminaire placement as close to the jet as possible. Try to use luminaires that cover the entire jet. Parts not covered by the lighting will not be visible in the dark.
Examples of luminaire series are:
4.0192
4.0362

waterfall_2a2830e1

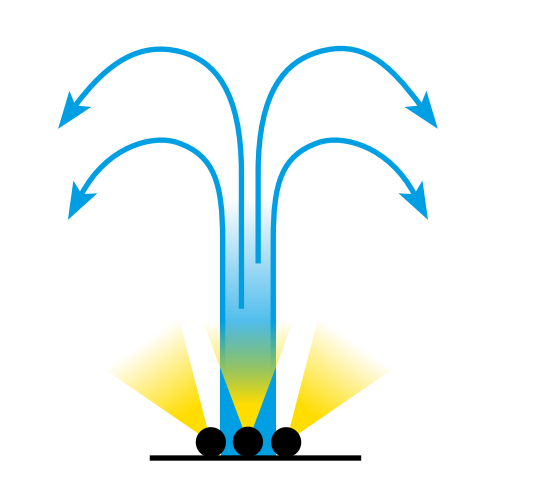

SIMPLE FOUNTAIN (WATER JET)

Illuminate the water jet from the centre and, where possible, choose a luminaire that provides powerful illumination of the central jet, covering the beginning of the falling water. For wide water jets, it may be necessary to illuminate the falling water with supplementary luminaires, aimed diagonally outward.
Examples of luminaire series are:
4.0192
4.0362

waterfall_2a2830e1

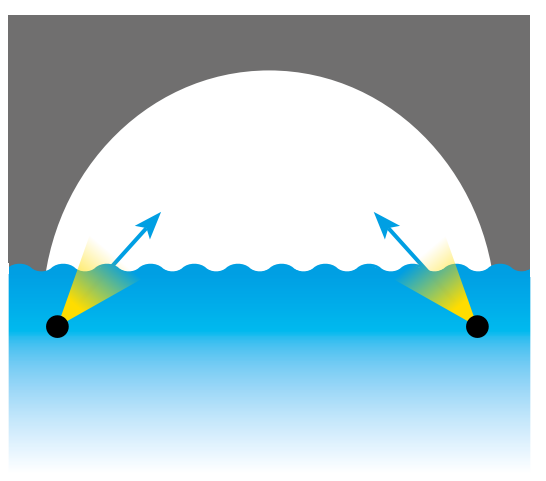

BRIDGE ARCH

Bridge arches are generally illuminated diagonally from each side. Placing the luminaires below the water surface is preferable. The refraction of light through the water surface creates beautiful shimmering effects and reflections on the bridge arch.
Examples of luminaire series are:
4.0192
4.0362

shutterstock_60855814_18818b3c

For more information, please contact us at sales@malux.se or call +46 660-29 29 02
